Protocol for High Throughput Screening of Antibody Phage Libraries

How to cite Favorites Q&A Share your feedback Cited by

Abstract

Phage display is a proven and widely used technology for selecting specific antibodies against desired targets. However, an immense amount of effort is required to identify and screen the desired positive clones from large and diverse combinatorial libraries. On the other hand, the selection of positive binding clones from synthetic and semi-synthetic libraries has an inherent bias toward clones with randomly produced amber stop codons, making it more difficult to identify desirable binding antibodies. To overcome the screening of desired clones with amber codons, we present a step-by-step approach for effective phage library screening to isolate useful antibodies. The procedure calls for creating a simple new vector system for soluble production of phage ELISA positive binding clones with one or more amber stop codons in their single-chain antibody fragment (scFv) gene sequences, which is otherwise difficult in standard screening.


Graphical abstract:


Keywords: Phage display, Amber codon, scFv, High-throughput screening, Novel vector system

Background

Biomolecules based on monoclonal antibodies are commonly utilized for disease detection and prevention (Borghardt et al., 2018; Parray et al., 2020; Kumaret al., 2022). The single-chain variable fragment (scFv) antibody is one of the most often exploited biomolecules because it is the smallest antibody unit and has low immunogenicity and low-cost production properties (Kumar et al., 2019b; Parray et al., 2020). The scFv is the most commonly employed combinatorial therapeutic entity, either alone or in combination with other medications (Frenzel et al., 2016; Kumar et al., 2019b). An antibody in the form of scFv has variable heavy (VH) and light-chain (VL) sections that are linked by an efficient linker that can be effectively produced in E. coli (Kumar et al., 2012; Kumaret al., 2019a). The phage display technique is the most popular and successful way of generating scFv antibody fragments among all in vitro display methods. The size and functional diversity of the library used for screening enhances the efficiency of isolating scFv molecules from phage display antibody libraries. The most common issue with the soluble expression of scFv clones from phage libraries is the higher frequency of amber codons within the scFv gene, resulting in the premature expression of scFv clones in non-suppressor E. coli strains. This is more common in the case of synthetic and semi-synthetic libraries because these libraries are constructed randomly at few residues—particularly at NNN, NNK, NWG, NWC, and NSG codons—which increase the biased inclusion of amber codons (Marcus et al., 2006). Due to the frequent presence of amber codons within antibody gene sequences, the isolation of functional soluble scFv molecules is the most prevalent problem encountered during the screening of synthetic and semi-synthetic libraries, resulting in premature expression of scFv clones in non-suppressor E. coli strains (Barderas et al., 2006; Perween et al., 2021a). However, the inclusion of an amber stop codon does not affect the display of scFvs on the phage surface in E. coli suppressor strains, but it reduces the overall yield in terms of the total number of functional soluble scFv protein-expressing clones.


Directing individual scFv genes to be resynthesized or using Kunkel mutagenesis are two popular ways to solve this problem. Both of these processes become expensive and time demanding, considering when the purpose is to screen a substantial proportion of clones, especially in viral targets where a large amount of screening is essential to generate a small number of neutralizing clones (Reader et al., 2019).


In this Bio-protocol, we describe a novel strategy for rapid screening of scFvs containing amber codons and turning them into usable soluble scFvs that can be applied to several phage antibody libraries. We discuss a fast and reliable screening strategy that can be used to screen a large number of phage antibody libraries with amber stop codons (TAG) in the encoding series.

Materials and Reagents

All chemicals are of Analytical Reagent Molecular Biology/Tissue culture grade.

PRODUCT NAME CATALOGUE NUMBER COMPANY NAME
(3-(N-morpholino) propane sulphonic acid) MOPs M1254 Sigma-Aldrich
2× YT media G034-500G Himedia
Absolute ethanol 24102 Sigma-Aldrich
Acetic acid W200603-1KG-K Sigma-Aldrich
Acrylamide A8887-100G Sigma-Aldrich
Agarose MB080-100G Himedia
Alkaline Phosphatase Blue Membrane substrate solution

AB0300

Sigma-Aldrich
Ampicillin SD002 Himedia
Anti-rabbit HRP Code: 111-035-144 Jackson Immune Research
Beta-mercapto ethanol 21985023 ThermoFisher
Bis-Acrylamide A2792-100ml Sigma-Aldrich
Boric acid MB007 Himedia
Bovine Serum Albumin (BSA) A3059-10G Sigma-Aldrich
Bright-Glo Luciferase assay system E2610 Promega
Bromophenol Blue B0126-25G Sigma-Aldrich
Calcium chloride GRM710 Himedia
Cut smart buffer B6004S New England Biolabs
Cyclosporine RM8155 Himedia
DEAE-dextran MB145 Himedia
Diethanolamine RM8218 Himedia
Diethyl pyro carbonate (DEPC) D43060 RPI – Research Products International
Dimethyl sulphoxide (DMSO) 673439 Sigma-Aldrich
DpnI enzyme R0176S New England Biolabs
Dulbecco’s Modified Eagle Medium (DMEM) 11965118 GibcoTM
Ethylene diamine tetra acetic acid GRM678 Himedia
EXpi 293F cells 100044202 ThermoFisher
Ficoll 26873-85-8 Sigma-Aldrich
Gel extraction kit 28706X4 Qiagen
Gelatin G2500 Sigma-Aldrich
Glucose MB037 Himedia
Glycerol MB060 Himedia
Glycine MB013 Himedia
HisPurTM Ni-NTA Magnetic Beads 88832 Thermo ScientificTM
Histopaque 10771 Sigma-Aldrich
Hydrocortisone RM556 Himedia
Hydrogen chloride 18-603-211 ThermoFisher
Imidazole MB019-100G Himedia
Isopropyl β-D-thiogalactoside RM2578 Himedia
Kanamycin Sulphate MB105 Himedia
L-glutamine 25030081 GibcoTM
Ligase 15224017 InvitrogenTM
Ligase buffer 46300018 InvitrogenTM
LMB3 primer Custom DNA oligos Integrated DNA Technologies IDT
Luria Broth M1245 Himedia
Luria Broth Agar M1151-500G Himedia
Magnesium chloride MB237 Himedia
Magnesium sulphate GRM1281 Himedia
Methanol 322415-250ml Sigma-Aldrich
Mini prep kit 27106X4 Qiagen
Mono Sodium Phosphate GRM3964 Himedia
NcoI-HF® R3193S New England Biolabs
Ni NTA beads 88221 ThermoFisher
NotI-HF® R3189S New England Biolabs
Penicillin SD028 Himedia
PHEN primer Custom DNA oligos Integrated DNA Technologies IDT
Phosphate buffered saline TS1101-20L Himedia
Phytohemagglutinin (PHA) 10576015 GibcoTM
PierceTM Protein G Magnetic Beads 88848 Thermo ScientificTM
Polybrene (Hexadimethrine bromide) H9268 Sigma-Aldrich
Polyethylene glycol MB149-500G Himedia
Potassium Acetate W292001 Sigma-Aldrich
Potassium chloride P3911-25G Sigma-Aldrich
Potassium dihydrogen phosphate PO662-25G Sigma-Aldrich
RNase A EN0531 ThermoFisher
RPMI-1640 medium 11875093 GibcoTM
Skim milk GRM1254 Himedia
SnakeSkinTM Dialysis Tubing 88244 Thermo ScientificTM
Sodium Azide GRM1038 Himedia
Sodium bicarbonate GRM849 Himedia
Sodium carbonate GRM851 Himedia
Sodium chloride MB023-1KG Himedia
Sodium dodecyl-sulphate 0227-10G VWR Life science
Sodium hydroxide 72064 Sigma-Aldrich
Sodium phosphate dibasic Bio Reagent NIST2186II Sigma-Aldrich
Stop solution N600 Thermo Fisher Scientific
Streptomycin Sulphate CMS220 Himedia
Sucrose MB025 Himedia
TG1 Electrocompetent Cells 23227 Lucigen
TMB (Tetramethylbenzidine) Substrate solution N301 Thermo Fisher Scientific
Tris base TC072 Himedia
Tris Buffered Saline R017R.0000 ThermoFisher
Tris free base MB029-500G Himedia
Tris-HCl MB030 Himedia
Triton X100 MB031 Himedia
Trypan blue T8154 Sigma-Aldrich
Trypsin TC598 Himedia
Tween 20 MB067 Himedia

  1. Goat affinity purified Antibody to human IgG Fc, alkaline phosphatase conjugated goat affinity purified antibody to IgG Fc, and purified human IgG whole molecule were purchased from Cappel, MP Bio, USA.

  2. A human mAb 1418 against parvovirus B19 was gifted by Dr. Zolla Pazner, NYU SoM, USA


Plasticware

All plasticware used is disposable (glassware is not used in this work).

NAME CATALOGUE NUMBER COMPANY NAME
96 well flat bottom Immunol plate for ELISA CLS3370 Corning
96 well round bottom Immunol plate for ELISA CLS3367 Corning
96 well tissue culture plate CLS 3628 Corning
Disposable pipettes of 5 mL, 10 mL and 20 mL CLS4487 Corning
Microfuge tubes 1.5 mL CLS3620 Corning
PCR tubes of 0.2 mL PCR-02-A Axygen
Petri dishes 460062 Tarson
Pipette tips 0.5–10 μL AXYT300RS Corning
Pipette tips 1–200 μL CLS4860 Corning
T-25 cm3 tissue culture flask C6231 Corning
T-75 cm3 tissue culture flask C7231 Corning


BUFFERS

  1. 10× stock of gel loading dye (see Recipes)

  2. 2× Sample buffer (see Recipes)

  3. Acrylamide:Bis (100 mL) (see Recipes)

  4. Antibiotic concentration (see Recipes)

  5. Buffer for Agarose Gel Electrophoresis (see Recipes)

  6. Coating Buffer (see Recipes)

  7. Composition of Reagents (see Recipes)

  8. Counting of Expi293FTM Human Cells (see Recipes)

  9. Destaining solution I (see Recipes)

  10. Elution Buffer (1 L) (see Recipes)

  11. Lower Gel Buffer [pH 8.8] 200 mL (see Recipes)

  12. Lysis buffer (1 L) (see Recipes)

  13. Phosphate buffered saline (see Recipes)

  14. Purification of scFvs (see Recipes)

  15. Tank Buffer 1× 2L (pH 8.3) (see Recipes)

  16. Upper Gel Buffer [pH 6.8] 100 mL (see Recipes)

  17. Wash Buffer (1 L) (see Recipes)

  18. Wash Buffer (see Recipes)

  19. Western Blotting solution (see Recipes)

Procedure

  1. HELPER PHAGE PRODUCTION

    A helper phage is necessary for transferring phagemid particles into E. coli. Phagemid particles contain (i) an antibiotic maker, (ii) antibody-G3P fusion protein, and (iii) phage origin of replication.

    The phagemid libraries are amplified along with the antibody-G3P fusion protein and helper phage genes, which are required for infection, replication, assembly, and budding.

    1. Take three Corning® 50 mL Falcon centrifuge tubes (FCTs) and label them A, B, and C.

    2. Add 5 mL of 2× YT media to each FCT tube.

    3. Take B and C as negative controls by adding ampicillin to one and kanamycin to the other.

    4. Add 20 μL of TG1 E. coli cells to all three FCTs.

    5. Incubate the FCTs at 37°C with shaking for overnight growth.

    6. Subculture 20 μL of the previously inoculated TG1 cells in FCT A (Step A1) in 5 mL of fresh 2× YT media; incubate for 2–4 h at 37°C with shaking.

    7. Then, add 40 μL of helper phage to the cultured TG1 cells.

    8. Grow for 30 min at 37°C without shaking.

    9. Grow for 30 min at 37°C with shaking.

    10. Add this culture to 200 mL of fresh 2× YT media with kanamycin in a 50 μg/mL working concentration.

    11. Allow to grow overnight at 30°C with shaking.

    12. Remove the flask from the incubator, collect the culture in an autoclaved caesium bottle.

    13. Centrifuge at 14,260 × g for 30 min at 4°C.

    14. Pour the supernatant into another fresh caesium bottle and centrifuge at 14,260 × g and 4°C for 30 min.

    15. Without disturbing the pellet, collect the supernatant in a glass bottle and add PEG/NaCl [20% (wt/vol) Polyethylene glycol 6000, 2.5 M NaCl], keeping the ratio of the supernatant and PEG/NaCl as 50:15.

    16. Store in a cold room at 4°C for 4–5 h, or overnight for better results.

    17. Spin the culture at 14,260 × g and 4°C for 1 h to allow the cells to settle down.

    18. Without disturbing the pellet, discard the supernatant, and resuspend the pellet with 1× PBS, keeping it in 1.5 mL tubes.

    19. Centrifuge the microtubes at 16,200 × g for 5 min. In case a pellet is formed, transfer the supernatant into fresh tubes and store at 4°C ( Figure 1 ).

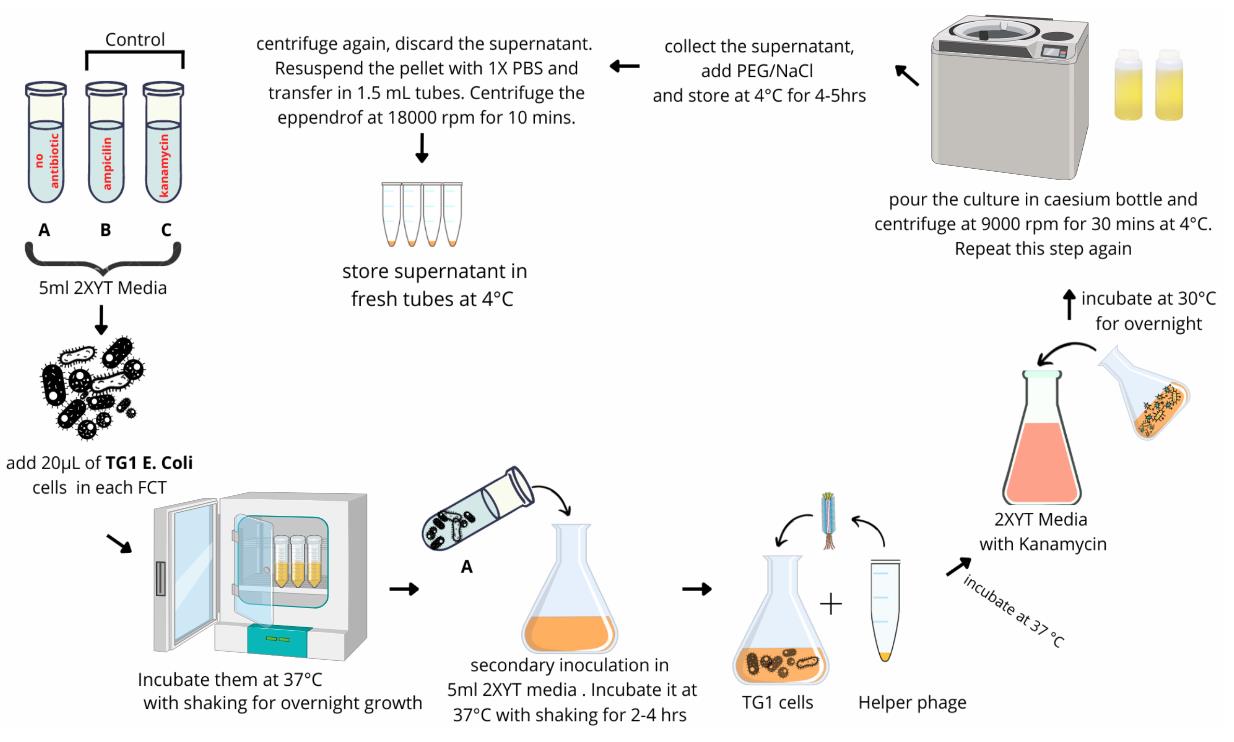

    Figure 1. Schematic representation of the steps involved in Helper Phage preparation.


  2. GROWING TOMLINSON I + J AND MAKING SECONDARY STOCK

    1. Take 100 mL of 2× YT media containing ampicillin and 1% (vol/vol) glucose. To this media, add 500 μL of the Tomlinson I + J phage library stock.

    2. Incubate for 1–2 h at 37°C with shaking, until the O.D. at 600 nm is approximately 0.4.

    3. Divide the 100 mL of culture media into two parts. First, use 50 mL to grow the library; then, use the remaining media to make secondary stocks of the library.


    Growing the library (phage stocks):

    1. Take 50 mL of the 100 mL of grown media and add 200 μL of helper phage.

    2. Incubate for 30 min at 37°C without shaking.

    3. Centrifuge at 1,200 × g for 10 min.

    4. Carefully discard the supernatant without disturbing the pellet.

    5. Dissolve the pellet in 100 mL of 2× YT media containing 100 μg/mL ampicillin, 50 μg/mL kanamycin, and 0.1% (wt/vol) glucose.

    6. Incubate the resuspended pellet overnight at 30°C with shaking.

    7. After overnight incubation, transfer the culture to a centrifuge bottle (caesium bottle) and centrifuge at 14,260 × g and 4°C for 30 min.

    8. Transfer the supernatant to another caesium bottle and centrifuge again at 14,260 × g and 4°C for 30 min.

    9. Carefully transfer the supernatant into another autoclaved glass bottle and discard the pellet. Add PEG/NaCl (20% Polyethylene glycol 6000, 2.5 M NaCl) to the supernatant collected (15 mL of PEG/NaCl to 50 mL supernatant).

    10. Store this in a cold room at 4°C for 4–5 h, or overnight for better results.

    11. Spin the culture at 14,260 × g and 4°C for 1 h to allow the cells to settle down.

    12. Without disturbing the pellet, discard the supernatant and resuspend the pellet with 1× PBS; keep it in 1.5 mL tubes.

    13. Centrifuge the microtubes at 16,200 × g for 10 min. In case a pellet is formed, transfer the supernatant into fresh tubes and store at 4°C for short term storage. Add 15% (vol/vol) glycerol for longer storage at -80°C ( Figure 2 ).


    Making secondary stocks of phage library:

    1. Grow the remaining 50 mL of media further for 2 h at 37°C with shaking.

    2. Allow the cells to settle down by centrifuging the culture at 1,500 × g for 15 min.

    3. Resuspend the pellet in 3 mL of 2× YT media containing 15% (vol/vol) glycerol.

    4. Store at -80°C until further use ( Figure 2 ).

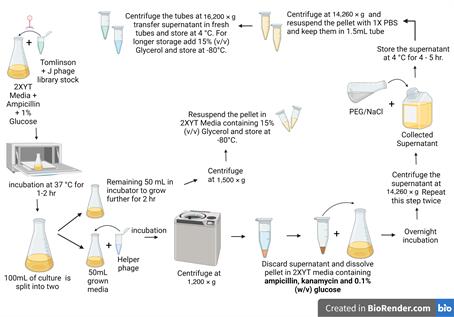

    Figure 2. Schematic representation of the steps involved in library amplification for screening purposes and library secondary stock preparation.


  3. BIO-PANNING

    In this step, the target proteins are immobilized onto the surface of the microtiter plate. The first step is the addition of the rescued Tomlinson phage library. The second step involves binding, where the phage displaying scFvs, the highest affinity antibodies, bind the epitopes of the antigen, and those with low binding affinity are removed by washing. The antigen bound phage are eluted by enzymatic digestion using trypsin. The eluted phage are infected to TG1 followed by addition of helper phage for amplification. To accumulate phage displaying high-affinity antibody fragments, these steps were repeated three times with the amplified phage from the preceding round of panning, and each time, the number of washing cycles is increased.


    ROUND 1

    1. One day before the experiment, coat one row (say row C) of the ELISA plate, namely plate A, with the required antigen (100 μL per well), with a concentration of 5 μg. Coat the antigen with coating buffer.

    2. Incubate plate A at 4°C overnight.

    3. Next day, make 3% BSA in 5 mL of PBS and incubate for 10 min at 37°C. Then, coat another plate, i.e. , plate B; coat two rows (say rows C and D) and incubate the plate at 37°C for 1 h.

    4. Plate C: coat one row (say row C) with a pinch of skim milk in 1 mL of autoclaved PBS + 700 μL of phage stock. Coat 100 μL per well.

    5. Incubate plate C at room temperature for 30 min. Then, transfer the coating from row C to any other row, say row D. Incubate for 30 min more.

    6. After 1 h of coating plate B, wash the plate once with autoclaved PBS (250 μL per well) and transfer the content of plate C onto row C of plate B.

    7. Again, incubate plate B at room temperature for 30 min and then transfer the content of row C onto row D, followed by another 30 min incubation.

    8. While washing plate B, simultaneously wash plate A, by using autoclaved PBS (250 μL per well) and then block with 3% (wt/vol) BSA (200 μL per well). Incubate at room temperature for 1 h.

    9. Wash plate A three times with autoclaved PBS.

    10. Then, transfer plate B content onto plate A; followed by incubation for 1 h at room temperature.

    11. After incubation, wash plate A with PBST 10 times. Make 1 mL of PBS containing 50 μL of trypsin and add 95 μL of this solution to each well.

    12. Keep the plate for 10 min at 37°C.

    13. Then, collect all the trypsinized content into one aliquot. This will be the output of bio-panning round 1.

    14. Use the output of bio-panning 1 to calculate the transducing unit (TU) ( Figure 3 ).

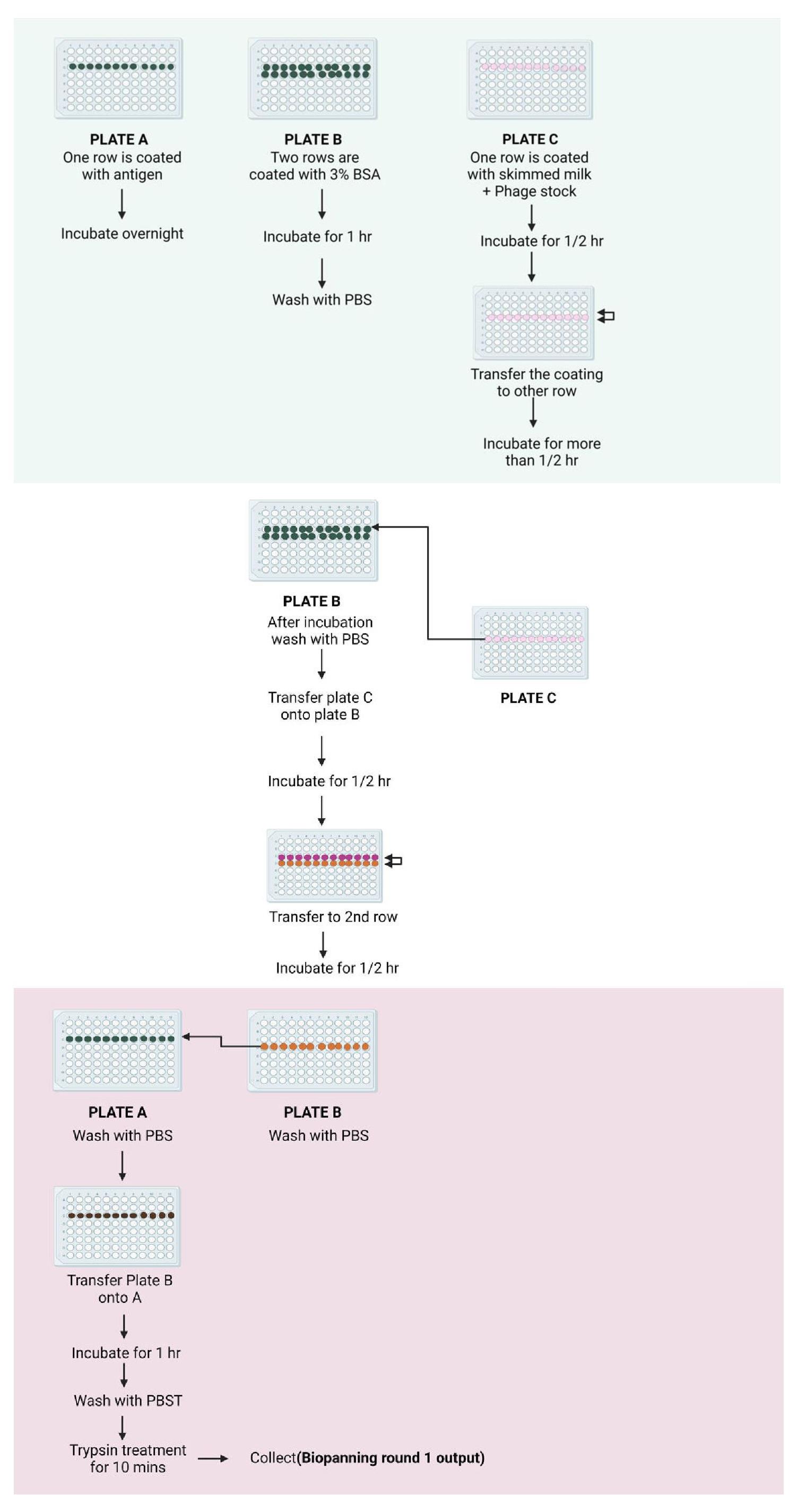

      Figure 3. Schematic representation of the steps involved in the bio-panning process.


    Preparation of the next round of bio-panning

    1. Add 500 μL of bio-panning output into 5 mL of TG1 cell growth media.

    2. Keep for 30 min at 37°C with shaking.

    3. Centrifuge at 700 × g for 10 min.

    4. Use 1 mL of supernatant to dissolve the pellet formed during centrifugation and throw the rest of the supernatant out.

    5. Spread this on a bioassay dish containing 2× YT agar with ampicillin.

    6. Allow the bacteria to grow at 37°C overnight.

    7. Next day, add 3–5 mL of 2× YT media containing 15% glycerol onto the bioassay dish and scrape all the colonies grown overnight. Collect them in a fresh tube.

    8. Use 100 μL of the scraped colonies and store the rest.

    9. Add 100 μL of scraped colonies to 50 mL of 2× YT media containing ampicillin (100 µg/mL) and 1% (vol/vol) glucose.

    10. Allow it to grow for 2 h at 37°C with shaking.

    11. Take 10 mL of the above culture and add a 40 μL of helper phage. Incubate for 30 min at 37°C without shaking.

    12. Centrifuge the culture at 700 × g for 15 min and discard the supernatant without disturbing the pellet.

    13. Dissolve the pellet in 50 mL of 2× YT media containing 100 µg/mL ampicillin, 50 µg/mL kanamycin, and 0.1% glucose. Incubate overnight at 30°C with shaking.

    14. Centrifuge the overnight grown culture at 14,260 × g and 4°C for 30 min, collect the supernatant in a fresh cesium bottle and centrifuge again at 14,260 × g and 4°C for 30 min.

    15. Carefully transfer the supernatant into an autoclaved glass bottle and discard the pellet. Add PEG/NaCl (20% Polyethylene glycol 6000, 2.5 M NaCl) to the supernatant collected (15 mL of PEG/NaCl to 50 mL of supernatant).

    16. Store this in a cold room at 4°C for 4–5 h, or overnight for better results.

    17. Spin the culture at 14,260 × g for 1 h at 4°C to allow the cells to settle down.

    18. Without disturbing the pellet, discard the supernatant and resuspend the pellet with 1× PBS, keeping it in 1.5 mL tubes.

    19. Centrifuge the microtubes at 16,200 × g for 10 min. In case a pellet is formed, transfer the supernatant into fresh tubes and store it at 4°C.

    20. The collected phage is to be used as an input in the next round of bio-panning by coating this on plate C instead of phage stock.

    Note: With each bio-panning round, decrease the antigen coating concentration (for example, round 1 with 5 μg/μL, round 2 with 3 μg/μL, and round 3 with 1.5 μg/μL) and calculate the TU of every input and output used during phage selection.

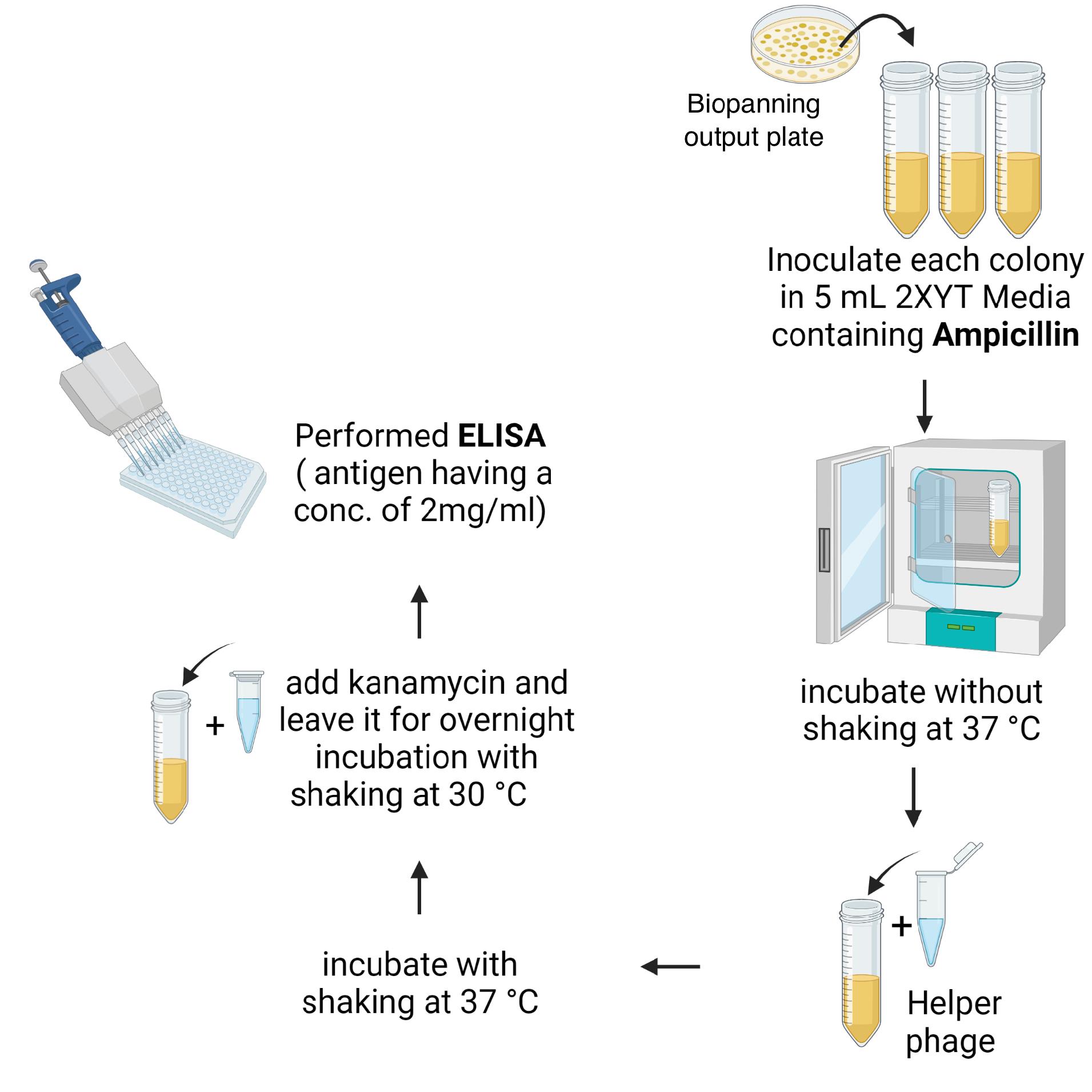

  4. SCREENING BY PHAGE ELISA

    Day 0: One day before performing ELISA

    1. For the phage selection process, grow the colonies of the last bio-panning round output. Inoculate the colonies formed during the last round of bio-panning output; each inoculation is done in 5 mL of 2× YT media containing 100 μg/mL ampicillin.

    2. Incubate for 30 min at 37°C without shaking. Wait until OD 600 of the culture reaches 0.4–0.6.

      Back up set: At this step, take 200 μL of the culture of each clone and add 200 μL of autoclaved 50% (vol/vol) glycerol solution to make a stock and store at -80°C for future experiments

    3. Add 20 μL of helper phage.

    4. Incubate again for 30 min at 37°C with shaking.

    5. Add 50 μg/mL of kanamycin and incubate overnight at 30°C with shaking at 140–160 × g .

    6. Coat the 96 well assay plate with the required antigen with a concentration of 2 μg/μL. Do BSA coating as negative control and keep the plate overnight at 4°C ( Figure 4 ).



      Figure 4. Schematic representation of the steps involved in the Phage ELISA screening process.


    ELISA

    1. Next day, take the antigen-coated plate out of 4°C and wash once with PBS.

    2. Block the plate with 200 μL of 5% skim milk in PBS per well.

    3. Incubate the plate for 1 h at room temperature.

    4. Take all the colony inoculation out of the incubator and centrifuge the tubes at 3,900 × g for 20 min.

    5. After 1 h blocking, wash the ELISA plate three times with PBS (250 μL).

      Note: Blocking can be extended to 90 min if required, based on the timing of the parallel steps

    6. After 1 h of incubation, wash the plate three times with PBS.

    7. Then add 100 μL of primary antibody per well, i.e. , 50 μL of supernatant from all the centrifuged tubes and 50 μL of skim milk (diluted in 1:1).

    8. Incubate for 1 h at room temperature.

    9. Wash the plate with 250 μL of 0.1% PBST four times.

    10. Add 100 μL of secondary antibody per well (1:2,000). Follow with a 1 h incubation at room temperature in the dark.

    11. Wash the plate with 250 μL of 0.1% PBST six times.

    12. Add 100 μL of the substrate (TMB) to each well.

    13. Allow the reaction to take place for 15–20 min in the dark.

      To stop the reaction, add 50 μL of stop solution (2 NH2SO4 ) per well, and read the plate at 450 nm on a multimode ELISA reader.


  5. ISOLATION OF PLASMID DNA

    1. Identify the positive binding clones in Phage ELISA (at least four times more than the negative control).

    2. Take two FCTs and label them A and B; add 5 mL of 2× YT media to each FCT.

    3. Take B and add ampicillin (100 µg/mL) and C as negative control by adding kanamycin (50 µg/mL) in it.

    4. In FCTs A and B, inoculate from a glycerol stock that is preserved at -80°C.

    5. Incubate the FCT at 37°C with shaking for overnight growth.

    6. Next morning, check tubes A and B. Tube A culture should be turbid, and in tube B, there should be no growth.

    7. Spin down by centrifuging the culture at 2,820 × g for 15 min.

    8. For plasmid isolation, use the Qiagen Miniprep kit following the manufacturer’s instructions.

    9. Check the quality and concentration of the isolated plasmid DNA using a nanodrop spectrophotometer. The 260/280 ratio of the isolated DNA should be 1.8.

    10. Prepare a 0.8% Agarose gel and check the quality of the isolated plasmid DNA on the gel.

    11. Make a 10 μL aliquot of the plasmid DNA, and use LMB3 and PHEN sequencing primers for sequencing the scFv insert sequence.


    Soluble ELISA
    1. Perform ELISA as described in the phage ELISA section.

    2. Add 100 μL of purified scFv and incubate for 1 h at room temperature.

    3. Wash the plate three times with 0.1% PBST.

    4. Use a 1:1,000 dilution of primary antibody (anti-His tag) in 2% MPBS and incubate at room temperature.

    5. Wash three times with 0.1% PBST.

    6. Use 1:2,000 diluted anti-rabbit-HRP conjugated secondary antibody in 2% MPBS and incubate at room temperature, followed by washing, as mentioned above.

    7. Add 100 µL of TMB substrate and allow the color to develop. Once the color appears, add 8 NH2SO4 to stop the reaction.

    8. Read the plate at 450 nm in ELISA reader.


  6. DILUTION AND PLATING FOR TRANSDUCING UNIT (TU) CALCULATION



    Figure 5. Representative image showing dilution preparation strategy for helper phage/library TU calculation.


    1. The plating of each dilution is done on a different plate containing ampicillin.

    2. Pour the mixture of phage and bacteria on a plate and spread slowly using a spreader. Label each plate with the dilution that it contains.

    3. Incubate the plates at 37°C for overnight growth. Next day, count the colonies for TU calculation ( Figure 5 ).


  7. CALCULATE TRANSDUCING UNIT

    TU = (No. of colony × 1000)/(10 × dilution). For a 10-8  dilution plate, we got nine colonies;

    Then the TU is calculated as: (9 × 1000)/(10 × 10-8 ) = 9 × 1010


  8. PREPARATION OF COMPETENT CELLS

    1. Streak E. coli TG1 cells on an LB plate and allow cells to grow at 37°C overnight.

    2. Inoculate a single colony in 5 mL of LB media and grow overnight at 37°C.

    3. Subculture in 100 mL of LB by inoculating 1 mL of an overnight culture of E. coli , and grow at 37°C on a shaker until the O.D. at 600 nm reaches approximately 0.6.

    4. Cool culture on ice immediately, and harvest cells by centrifugation at 4,200 × g and 4°C for 5 min.

    5. Remove the supernatant carefully; remove any traces of supernatant by inverting the centrifuge tube on paper towels.

    6. Resuspend the bacterial pellet in 10 mL of ice-cold 0.1 M CaCl2 (autoclaved) and incubate on ice for 30 min.

    7. Recover cells by centrifugation as described above, resuspended in 5 mL of 0.1 M CaCl2 , and aliquot 200 μL of cells in microcentrifuge tubes.


  9. VECTOR DESIGN

    A representative strategy for vector design is shown in Figure 6 .

    A set of designed PCR primers to replace TAG amber codon into TAA in the junction of the scFv-pIII junction is used for vector construction.

    Forward Primer: 5’CACATCATCATCACCATCACGGGTAATAAGAACAAAAACTCATCTC3’

    Reverse primer: 5’GAGATGAGTTTTTGTTCTTATTACCCGTGATGGTGATGATGATGTG3’.

    PCR Reaction setup:

    Steps Initial Denaturation Cycling 16× Extension Hold
    Temperature 95°C 95°C 52°C 72°C 72°C 10°C
    Time 2 min 30 s 50 s 4 min 5 min


    The PCR product is digested by Dpn 1 enzyme

    PCR product 20 µL
    Dpn 1 enzyme 1 µL
    Cut smart buffer 2.5 µL

    Incubate the reaction mixture at 37°C for 2 h. Tap the tube in between.


    1. Thaw two vials of competent cells from the -80°C freezer on ice for 5–10 min. DO NOT tap at this step.

    2. Add 5 µL of Dpn 1 digested product into one tube, and keep the other tube as blank or negative control. Incubate the cells on ice for 30 min.

    3. After 30 min, place both the tubes in the floater to heat shock for 60 s (at this step, set water bath at 42°C).

    4. Immediately place the tubes in ice for 5 min; at this step, pre-warm the media at 37°C.

    5. Add 900 µL of pre-warmed 2× YT medium to the cells in the tube.

    6. Incubate the tubes in the shaker for 60 min at 220 rpm to grow the cells.

    7. Take out the tubes from the shaker, aspirate 100 µL of cell suspension, and plate/spread on LB-Agar-ampicillin plates. Incubate plates in a 37°C incubator for 16 h or overnight.

    8. Next morning, take out the plates, count the colonies, and store at 4°C until further use.

    9. Add 5 mL of 2× YT supplemented with a standard concentration of ampicillin to five tubes. Pick a single colony for inoculation and culture of the colony obtained on the plates; incubate at 37°C with 220 rpm shaking. Incubate also one tube of media as a control.

    10. Next morning, isolate the plasmid DNA from all four tubes using the Qiagen plasmid isolation kit as per the manufacturer’s instructions.

    11. Check the quality of the isolated plasmid using a spectrophotometer by observing the 260/280 DNA ratio.

    12. Aliquot the DNA and send these samples for sequencing using vector-specific primers.

    13. Analyze the DNA sequence data for point mutations and mark the positive clones for further use. Discard the negative clones.


    Digestion of designed vector

    Reaction mixture for restriction digestion:

    Component Volume (μL)
    Plasmid DNA (250 ng·μL-1) 10 μL
    10× CutSmart Buffer (NEB) 5 μL
    Nco I-HF (NEB) 2 μL
    Not I-HF (NEB) 2 μL
    Nuclease free water 31 μL

    Incubate the reaction at 37°C for 2 h.


    1. After 2 h, add 10 μL of 5× gel loading dye and run the sample on a 0.8% Agarose gel, at 100 V for approximately 60 min.

    2. Cut and excise the digested vector DNA from the agarose gel using a sharp surgical blade. Place the excised fragment in a 1.5 mL Eppendorf tube. Purify the digested vector from the excised DNA using the Qiagen Gel extraction kit as per the manufacturer’s protocol.

    3. Evaluate the quality of the purified digested vector DNA using the spectrophotometer by calculating the 260/280 ratio. This purified vector is used for future cloning reactions.


    Digestion of scFv clones

    The phage ELISA binding positive clone that showed no binding in soluble ELISA was further used to isolate plasmid DNA from single colonies, as described in this section.

    The digestion reaction is set up as described below:

    Component Volume ( μL)
    Plasmid DNA (250 ng·μL-1 ) 10 μL
    10× CutSmart Buffer (NEB) 5 μL
    Nco I-HF (NEB) 2 μL
    Not I-HF (NEB) 2 μL
    Nuclease free water 31 μL


  1. After 2 h add 10 μL of 5× gel loading dye and run the sample on a 1% Agarose gel, at 100 V for approximately 40–60 min.

  2. Two bands should be observed in the agarose gel, one band size of approximately 4 kb corresponding to vector DNA and another of 800 bp corresponding to scFv DNA.

  3. Excise the agarose gel slice containing the relevant DNA Fragments (scFv insert 800 bp) and remove extra agarose to minimize the gel slice.

  4. Transfer the gel slice into a microcentrifuge tube and purify using the Qiagen gel extraction kit as per the manufacturer's instructions.

  5. Use this purified scFv DNA for cloning into a newly designed vector.


    Cloning of scFv DNA into newly designed vector

    Component Volume ( μL)
    scFv DNA insert 10 μL
    Designed vector 5 μL
    10× Ligase buffer 2 μL
    Ligase 2 μL
    Nuclease free water 31 μL


  1. Incubate the ligation reaction mixture at room temperature for 4–6 h. Alternatively, this can be kept at room temperature overnight.

  2. After 4–6 h incubation, thaw the TG1 competent cells on the ice for 5 min.

  3. Add 5 μL of ligation mixture to one tube and keep the second tube without insert and/or ligation mixture as a negative control.

  4. Heat-shock the cells for 60 s and immediately keep on ice for 5 min.

  5. Add 900 μL of 2× YT medium and incubate the tubes in a shaker incubator at 37°C for 1 h.

  6. After 1 h, centrifuge the tube at 2,400 × g for 5 min. Decant the supernatant and resuspend the pellet in reaming leftover media. Plate this on pre-warmed 2× YT-Agar plates supplemented with ampicillin, or optionally you can use LB-Agar plates with ampicillin.

  7. Incubate the plates in a 37°C incubator overnight or 12–16 h.

  8. Next morning, count the colonies on the reaction plate. NO COLONIES should be there in the control plate; otherwise, repeat the experiment with all new and freshly prepared reagents.

  9. Inoculate the single colony in 5 mL of 2× YT containing a standard concentration of ampicillin in two 50 mL FCTs. Label one tube as reaction and the other as blank, and incubate both tubes in a shaker incubator (200 to 220 rpm) at 37°C overnight.

  10. Transfer a small inoculum (approximately 4 mL) from the overnight primary culture to a 2 L flask (400 mL media) 2× TY containing 100 μg/mL ampicillin and 0.1% glucose. Grow shaking (250 rpm) at 37°C until the OD600 is approximately 0.9 (approximately 3 to 3.5 h).

  11. Once the OD of the culture reaches 0.9, add isopropyl β-D-thiogalactoside at a final concentration of 1 mM IPTG. Continue shaking (250 rpm) at 30°C overnight.

  12. Harvest the cells by centrifugation at 4,000 × g for 15 min. Store the cell pellet at -20°C if desired or process immediately.



Figure 6. Schematic representation of the modified vector design strategy.

Diagram depicting a modified method for soluble expression of scFv genes with amber stop codons. The amber stop codon (TAG) between the scFv-pIII gene in the original vector is altered to TAA, which prohibits the creation of scFv-pIII fusion proteins. The scFv genes are cloned directly into the modified vector using the same restriction site Nco1/Not1 that is used to clone the scFv gene into the original vector (Perween et al. , 2021a).


Resuspension of cell pellet and cell extract preparation

  1. Adjust pH to 8.0 using NaOH.

  2. Resuspend the pellet in 30 mM Tris-HCl, 20% (wt/vol) sucrose, pH 8.0, at 80 mL/gram of wet weight. Incubate on ice and add 500 mM EDTA dropwise to a final concentration of 1 mM; then incubate the cells on ice for 20 min with gentle agitation.

  3. Clarify the cell suspension by centrifuging at 8,000 × g and 4°C for 20 min.

  4. Collect the supernatant and resuspend the cells in the same volume of ice-cold 5 mM MgSO4 and incubate on ice for 20 min with gentle agitation.

  5. Centrifuge the cells at 8,000 × g and 4°C for 20 min. Collect the supernatant (supernatant is osmotic shock fluid containing periplasmic proteins) and dialyze extensively against lysis buffer.

  6. Filter the dialyzed supernatant through a 0.2 μm filter before continuing with the purification. Equilibrate the resin with lysis buffer (50 mM NaH2PO4 , 300 mM NaCl, 10 mM Imidazole, and pH = 8.0) prior the use of the Ni++ ions.


Purification OfscFvs
  1. For purification, use Ni-NTA beads; add 5 mL of 50% slurry of Ni-NTA-Agarose resin in a purification column and allow the beads to settle down.

  2. Wash the beads using MilliQ (MQ) water; add 10 column volume (CV) of MQ.

  3. Use 10 CV of binding buffer (20 mM Tris; pH = 7.2, 500 mM NaCl and 10 mM Imidazole) to equilibrate the column. Thus, the same pH and buffer composition as that of the Ni++ ion resin ensuring that the sample binds properly

  4. Add the filtered supernatant into the column and allow it to pass through gravitational force.

  5. After the supernatant has been passed, wash the column to remove any impurity. Add 20–30 CV of washing buffer (20 mM Tris; pH = 7.2, 500 mM NaCl, and 25 mM Imidazole).

  6. Elute the bound protein from beads, and use 5–6 CV of elution buffer (20 mM Tris pH = 7.2, 500 mM NaCl, and 500 mM Imidazole). Analyze the protein quality in terms of purity on a 15% Tri-glycine SDS-PAGE.

  7. Dialyze the protein using activated dialysis tubing, clip both the ends of the tube tightly, and put it in a beaker containing cold PBS. With the help of a magnetic stirrer, allow it to spin overnight at 4°C in a cold room.

  8. Mount the Superdex75 Increase column in AKTA FPLC system. Wash the pump thoroughly with PBS.

  9. Use 2 CV of PBS to equilibrate the column; load approximately 500 μL of the purified concentrated protein through the loop with 0.5 mL of fraction volume.

  10. Collect the different factions and analyze through SDS PAGE. Store the protein at -80°C in aliquots for further use. Mix 30 µL of sample with 5× SDS gel loading dye (6 µL). Heat the sample for 10 min at 100°C before loading.

Recipes

  1. Lysis buffer (1 L)

    50 mM NaH2PO4 (6.90 g of NaH2PO4·H2O; MW 137.99 g mol-1)

    300 mM NaCl (17.54 g of NaCl; MW 58.44 g mol-1)

    10 mM Imidazole (0.68 g of Imidazole; MW 68.08 g mol-1)

    Adjust pH to 8.0 using NaOH.

  2. Wash Buffer (1 L)

    50 mM NaH2PO4 (6.90 g of NaH2PO4·H2O; MW 137.99 g mol-1)

    300 mM NaCl (17.54 g of NaCl; MW 58.44 g mol-1)

    30 mM Imidazole (2.04 g of Imidazole; MW 68.08 g mol-1)

    Adjust pH to 8.0 using NaOH.

  3. Elution Buffer (1 L)

    50 mM NaH2PO4 (6.90 g of NaH2PO4·H2O; MW 137.99 g mol -1)

    300 mM NaCl (17.54 g of NaCl; MW 58.44 g mol-1)

    300 mM Imidazole (20.4 g of Imidazole; MW 68.08 g mol -1)

  4. Buffer for Agarose Gel Electrophoresis

    TBE (Tris Boric acid EDTA) Buffer, pH = 8.0

    For 10× TBE Buffer, dissolve 108 g Tris base, 55 g Boric acid, and 7.4 g of EDTA in 750 mL of water. Adjust the pH of the solution to 8.0 and make the final volume up to one liter. 1× TBE buffer is used as the working solution.

  5. Wash Buffer

    PBS-Tween-20, pH = 7.4

    200 mL of 10× PBS

    1 mL of Tween 20

    Adjust volume to 2 L with MQ water

  6. Coating Buffer

    Carbonate Buffer, pH = 9.6

    1.59 g Na2CO3

    2.93 g NaHCO3

    0.2 g NaN3

    Adjust volume to 1 L with MQ water

  7. Counting of Expi293FTM Human Cells.

    1. Aspirate 0.1 mL of cell suspension from the single cell suspension and stain with 0.1 mL of trypan blue (0.4%).

    2. Count both Dead and live cells for percentage viability calculations.

    3. Calculations:

      Cell counting = No. of viable cells × 2 × 104 Cells per mL

  8. 10× stock of gel loading dye (10 mL):

    1. Weigh 25 mg of bromophenol blue and dissolve in 7 mL of ddH2O in a 30 mL screwcap tube.

    2. Add 2.5 g of Ficoll and dissolve it (keep in shaker overnight to allow it to dissolve completely).

    3. Measure the volume using a pipette and make up to 10 mL using sterile ddH2O. Label and store at 4°C.

    4. The final concentration would be 0.25%.

    5. Bromophenol blue and 25% Ficoll.

  9. Antibiotic concentration

    1. Stock concentration= 100 mg/mL

    2. Working concentration= 100 μg/mL

    3. Therefore, for 2 mL

    4. N1V1=N2V2

    5. X*100000 = 200*100

    6. X = 200 μL

  10. Phosphate buffered saline [pH 7.2]

    1. NaCl = 8.0 g

    2. KCl = 0.2 g

    3. Na2HPO4 = 1.15 g

    4. KH2PO4 = 0.2 g

    All the components were dissolved in 700 mL of distilled water, and the pH was checked to be at 7.2 and made up to 1,000 mL.

  11. Acrylamide:Bis (100 mL, 30% stock)

    1. Acrylamide = 29.2 g

    2. Bis acrylamide = 0.8 g

    3. ddH2O = 7 mL

      Acrylamide and Bis acrylamide were weighed and dissolved in 70 mL of water, and the volume was made up to 100 mL. The solution was filtered through Whatman No.2 paper and stored at 4°C in an amber bottle.

  12. Upper Gel Buffer [pH 6.8] 100 mL

    This is nothing but the stacking gel buffer, i.e., 0.5 Molar Tris-HCl (4×). 6.6 g of Tris base was dissolved in 70 mL of ddH2O, and pH was checked and adjusted to 6.8 using 5 N HCl. The volume was made up to 100 mL and stored at 4°C.

  13. Lower Gel Buffer [pH 8.8] 200 mL

    Separating gel buffer (1.5 M Tris-HCl (4×))

    36.3 g of Tris was dissolved in 125 mL of ddH2O. pH was adjusted to 8.8 using 5 N HCl. Volume was made up to 200 mL and autoclaved. The solution was stored at 4°C.

  14. Tank Buffer 1× (pH 8.3) 2 L

    Tris base = 6.0 g Final conc. 0.025 M

    Glycine = 28.8 g Final conc. 0.192 M

    SDS = 2 g Final conc. 0.1 M

    ddH2O = 1,750 mL

    pH was checked to be approximately 8.3 and volume was made up to 2 L.

  15. Destaining solution I

    Methanol = 250 mL (50%)

    Acetic acid = 35 mL (7%)

    ddH2O= 215 mL

  16. 2× Sample buffer (5 mL)

    1. Tris-HCl (pH 6.8) = 1.25 mL (0.12 M)

    2. SDS = 0.2 g (4%)

    3. BME = 500 µL (10%)

    4. Glycerol = 1 mL (20%)

    5. Bromophenol blue (0.15%) = 500 µL (0.015%)

    6. ddH2O = 1.75 mL

    7. Total = 5 mL

    This was dissolved into aliquots and frozen in -20°C [0.15% Bromophenol Blue is prepared by dissolving 15 mg in 0.2 mL methanol and then adding 9.8 mL of water].

  17. Western Blotting solution Preparation

    Transfer Buffer

    Tris = 0.6 g (0.025 M)

    Glycine = 2.88 g (0.192 M)

    Methanol = 40 mL (20%)

    SDS = 60 mg (0.03%)

    Volume was made upto 160 mL and autoclaved. To this, 40 mL of methanol was added and stored at 4°C.


    TBS (Tris Buffer Saline)
    (400 mL)

    Tris = 4.84 g (0.1 M)

    NaCl = 3.6 g (0.9%)

    Components were dissolved, pH was adjusted to 7.5 with HCl, and volume was made up to 400 mL.


    TTBS
    (250 mL)

    TBS = 250 mL

    Tween 20 = 250 µL


    Blocking solution
    (30 mL)

    TTBS = 12 mL

    5% Gelatin = 18 mL (3%)


    Composition of Reagents:

    Buffer P1 [Resuspension buffer]

    50 mM Tris-HCl (pH 8)

    10 mM EDTA

    100 µL/mL RNase A


    Buffer P2 [Lysis buffer]

    200 mM NaOH

    1% SDS (w/v)


    Buffer P3 [Neutralization buffer]

    3 mM potassium acetate (pH 5.5)


    Buffer QBT [Equilibrium buffer]

    750 mM NaCl

    50 mM Mops (pH 7)

    15% isopropanol (v/v)

    0.15% Triton X-100 (v/v)


    Buffer QC [ Wash buffer]

    1 mM NaCl

    50 mM Mops (pH 7)

    15% isopropanol (v/v)

Acknowledgments

We thank the Medical Research Council of the United Kingdom for allowing us to use the Tomlinson libraries. We thank Prof. S Sinha, department of Biochemistry, AIIMS, New Delhi for his critical inputs during screening of the libraries. information—This work was supported by the Department of Biotechnology and by a Translational Health Science & Technology Institute core grant.

Competing interests

There are no conflicts of interest or competing interests.

References

  1. Barderas, R., Shochat, S., Martinez-Torrecuadrada, J., Altschuh, D., Meloen, R. and Ignacio Casal, J. (2006). A fast mutagenesis procedure to recover soluble and functional scFvs containing amber stop codons from synthetic and semisynthetic antibody libraries. J Immunol Methods 312(1-2): 182-189.
  2. Borghardt, J. M., Kloft, C. and Sharma, A. (2018). Inhaled Therapy in Respiratory Disease: The Complex Interplay of Pulmonary Kinetic Processes. Can Respir J 2018: 2732017.
  3. Frenzel, A., Schirrmann, T. and Hust, M. (2016). Phage display-derived human antibodies in clinical development and therapy. MAbs 8(7): 1177-1194.
  4. Kumar, R., Andrabi, R., Tiwari, A., Prakash, S. S., Wig, N., Dutta, D., Sankhyan, A., Khan, L., Sinha, S. and Luthra, K. (2012). A novel strategy for efficient production of anti-V3 human scFvs against HIV-1 clade C. BMC Biotechnol 12: 87.
  5. Kumar, R., Kumari, R., Khan, L., Sankhyan, A., Parray, H. A., Tiwari, A., Wig, N., Sinha, S. and Luthra, K. (2019a). Isolation and Characterization of Cross-Neutralizing Human Anti-V3 Single-Chain Variable Fragments (scFvs) Against HIV-1 from an Antigen Preselected Phage Library. Appl Biochem Biotechnol 187(3): 1011-1027.
  6. Kumar, R., Parray, H., Narayan, N., Garg, S., Rizvi, Z. A., Shrivastava, T., Kushwaha, S., Singh, J., Murugavelu, P., Anantharaj, A., et al. (2022). A broadly neutralising monoclonal antibody overcomes the mutational landscape of emerging SARS-CoV2 variant of concerns. Research Square. DOI: 10.21203/rs.3.rs-1431974/v1.
  7. Kumar, R., Parray, H. A., Shrivastava, T., Sinha, S. and Luthra, K. (2019b). Phage display antibody libraries: A robust approach for generation of recombinant human monoclonal antibodies. Int J Biol Macromol 135: 907-918.
  8. Marcus, W. D., Lindsay, S. M. and Sierks, M. R. (2006). Identification and repair of positive binding antibodies containing randomly generated amber codons from synthetic phage display libraries. Biotechnol Prog 22(3): 919-922.
  9. Parray, H. A., Shukla, S., Samal, S., Shrivastava, T., Ahmed, S., Sharma, C. and Kumar, R. (2020). Hybridoma technology a versatile method for isolation of monoclonal antibodies, its applicability across species, limitations, advancement and future perspectives. Int Immunopharmacol 85: 106639.
  10. Perween, R., Ahmed, S., Shrivastava, T., Parray, H. A., Singh, B., Pindari, K. S., Sharma, C., Shukla, S., Sinha, S., Panchal, A., K. et al. (2021a). A rapid novel strategy for screening of antibody phage libraries for production, purification, and functional characterization of amber stop codons containing single-chain antibody fragments. Biotechnol Prog 37(3): e3136.
  11. Reader, R. H., Workman, R. G., Maddison, B. C. and Gough, K. C. (2019). Advances in the Production and Batch Reformatting of Phage Antibody Libraries. Mol Biotechnol 61(11): 801-815.
Please login or register for free to view full text
Copyright: © 2022 The Authors; exclusive licensee Bio-protocol LLC.
How to cite: Singh, V., Garg, S., Raj, N., Lukose, A., Jamwal, D., Perween, R., Dhyani, S., Parray, H. A., Sharma, C. and Kumar, R. (2022). Protocol for High Throughput Screening of Antibody Phage Libraries. Bio-protocol 12(12): e4450. DOI: 10.21769/BioProtoc.4450.
Q&A

If you have any questions/comments about this protocol, you are highly recommended to post here. We will invite the authors of this protocol as well as some of its users to address your questions/comments. To make it easier for them to help you, you are encouraged to post your data including images for the troubleshooting.

If you have any questions/comments about this protocol, you are highly recommended to post here. We will invite the authors of this protocol as well as some of its users to address your questions/comments. To make it easier for them to help you, you are encouraged to post your data including images for the troubleshooting.

We use cookies on this site to enhance your user experience. By using our website, you are agreeing to allow the storage of cookies on your computer.
