Materials and Reagents

Materials

Pipette tips (Corning, Axygen, catalogue numbers: T-300, T-200-Y, and T-1000-B)
Serological pipettes (Corning, Falcon, catalogue numbers: 357543, 357551, and 357525)
Petri dishes, 100 × 15 mm (Fisherbrand, catalogue number: FB0875712)
Tissue culture-treated polystyrene (Corning, Falcon, catalogue numbers: 353043 [12-well plate], 353046 [6-well plate], 353108 [T-25 flask], 353136 [T-75 flask], and 353112 [T-175 flask])
Conical tubes, 15 mL and 50 mL (Corning, Falcon, catalogue numbers: 352096 and 352070)
Round-bottom test tubes, 5 mL (Corning, Falcon, catalogue numbers: 352058)
Steritop Quick Release (0.22 µm vacuum filter; MilliporeSigma, catalogue number: S2GPT05RE)
Millex-GP Syringe Filter Unit (0.22 µm syringe filter; MilliporeSigma, catalogue number: SLGP033RS)
Syringes, 30 mL, BD Luer-Lok tip (Becton, Dickinson and Company, catalogue number: 309650)
Cell Strainers, 40 µm and 100 µm (Fisherbrand, catalogue number: 22-363-547 and 22-363-549)

Reagents

Milli-Q water (MQH₂O; from Milli-Q Direct Water Purification System, see Equipment)
Dulbecco’s phosphate-buffered saline, without calcium chloride and magnesium chloride (PBS^–/–; MilliporeSigma, catalogue number: D8537)
Ethylenediaminetetraacetic acid disodium salt dihydrate (EDTA; MilliporeSigma, catalogue number: E513)
Sodium hydroxide (NaOH; MilliporeSigma, catalogue number: S5881)
Bovine serum albumin solution, 35% (35% BSA stock; MilliporeSigma, catalogue number: A7979)
Ammonium chloride (NH₄Cl; MilliporeSigma, catalogue number: A9434)
Potassium bicarbonate (KHCO₃; MilliporeSigma, catalogue number: 60339)
Sodium bicarbonate (NaHCO₃; MilliporeSigma, catalogue number: S5761)
Krebs-Ringer bicarbonate buffer (KRB powder; MilliporeSigma, catalogue number: K4002)
D-(+)-glucose (MilliporeSigma, catalogue number: G7021)
4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES; MilliporeSigma, catalogue number: H4034)
Collagenase from Clostridium histolyticum, type II (collagenase, type II; MilliporeSigma, catalogue number: C6885)
Trypsin-EDTA solution (MilliporeSigma, catalogue no. number: T4049)
TrypLE Express (Gibco, catalogue number: 12604013)
Endothelial Cell Growth Medium-2 BulletKit (Lonza, catalogue number: CC-3162)
Biotinylated anti-CD31 antibodies (Miltenyi Biotec, catalogue number: 130-119-893)
CELLection Biotin Binder Kit (anti-biotin Dynabeads; Invitrogen, catalogue number: 11533D)
Dynabeads CD45 (anti-CD45 Dynabeads; Invitrogen, catalogue number: 11153D)
0.5 M EDTA Stock (see Recipes)
Magnet-assisted cell sorting (MACS) Buffer (see Recipes)
Erythrocyte Lysis Buffer (see Recipes)
KRB Stock (see Recipes)
Collagenase Solution (see Recipes)

Equipment

Pipettes (e.g., Eppendorf, catalogue number: 3123000900)
Pipette gun (e.g., Hirschmann Laborgeräte, catalogue number: 9907200)
Scoopula (e.g., Fisherbrand, catalogue number: 14-357Q)
Tissue Forceps, 1 × 2 teeth, 5.75” (e.g., Integra LifeSciences, catalogue number: ST6-44)
Operating Scissors, straight, sharp-blunt, 5.75” (e.g., Integra LifeSciences, catalogue number: 5-SC-16)
Analytical balance (e.g., Mettler Toledo, catalogue number: 1115010657)
pH meter (e.g., VWR, SB20 sympHony; discontinued)
Heated magnetic stir plate (e.g., IKA Works, catalogue number: 0005020001)
Analog vortex mixer (e.g., VWR, catalogue number: 10153-808)
Milli-Q Direct Water Purification System (e.g., MilliporeSigma, catalogue number: ZR0Q008WW)
Biosafety cabinet (e.g., Thermo Fisher Scientific, catalogue number: 1375)
Vacuum pump (e.g., MilliporeSigma, catalogue number: WP6111560)
CO₂ incubator (e.g., Thermo Fisher Scientific, catalogue number: 3310)
Centrifuge (e.g., Eppendorf, catalogue number: 022628113)
Transmission light microscope (e.g., Leica Microsystems, catalogue number: 090-135.001)
Water bath (e.g., VWR, catalogue number: 10128-128)
Incubated shaker plate (e.g., VWR, catalogue number: 97009-894)
Magnetic stir bar (e.g., Fisherbrand, catalogue number: 14-512-127)
Beaker, 1 L (e.g., Fisherbrand, catalogue number: FB1001000)
DynaMag-5 Magnet (Invitrogen, catalogue number: 12303D)

Procedure

The immunomagnetic acquisition of HAMVECs described here is a two-staged procedure encompassing their isolation from fat and the subsequent enrichment of their cultures (Figure 1). It comprises four main steps: (A) harvesting the stromal vascular fraction from adipose tissue; (B) isolating HAMVECs from the stromal vascular fraction; (C) culturing the HAMVECs; and (D) enriching cultures of HAMVECs. The use of immunomagnetic microparticles delineated herein is key to the efficacy of the procedure (see Notes). This procedure was developed to enable the acquisition of HAMVECs from whole subcutaneous abdominal white adipose tissue but may be readily applied to lipoaspirate.

Figure 1. Immunomagnetic acquisition of endothelial cells from human adipose tissue. Schematic depicts the main steps involved in the isolation and enrichment of HAMVECs, as well as the rationale underlying the specific use of the immunomagnetic microparticles. Adapted from Antonyshyn et al. (2021).

Harvest the stromal vascular fraction from adipose tissue (Duration: 2–3 h)

Prepare the collagenase solution (see Recipes) and allow it to warm to 37°C using a water bath before processing the tissue^a,b. The trypsin-EDTA solution and Endothelial Cell Growth Medium-2 may also be placed in the water bath to pre-warm to 37°C at this time. The MACS buffer (see Recipes) should be stored at 4°C in the fridge; PBS^–/– and the erythrocyte lysis buffer (see Recipes) can be used as stored at room temperature (~21°C).

It is recommended that the collagenase solutions be prepared in multiples of two to help balance the centrifuge and that HAMVECs be isolated from the stromal vascular fraction derived from at least four collagenase solutions – corresponding to ~60 cm³ of fat – to mitigate the need for their protracted culture-mediated expansion (Table 1).

The volume of adipose tissue available for processing may be estimated based on its mass – measured using a balance – where the approximate density of fat is 0.9 g/cm³ (Abe et al., 2021). This estimate can be used to help determine the number of collagenase solutions that should be prepared (Table 1).

Table 1. Guide for the isolation of endothelial cells from human adipose tissue. Initial yield of HAMVECs obtained from a given amount of adipose tissue, prior to their enrichment and subsequent culture-mediated expansion, as well as the corresponding number of collagenase solutions that would need to be prepared. Isolating HAMVECs from 60–120 cm³ of fat is the most cost-efficient.

Adipose Tissue (cm³)	Collagenase Solutions (No.)	Plating HAMVECs (Primary culture vessel)	Passaging HAMVECs (Second culture vessel)
30	2	2× wells of 12-well plate	2× wells of 6-well plate
60	4	1× well of 6-well plate	1× T-25 flask
120	8	1× T-25 flask	1× T-75 flask
360	24	1× T-75 flask	1× T-175 flask

Excise adipose tissue from any skin using operating scissors and tissue forceps (Figure 2). Rinse the tissue with PBS^–/– before mincing it with operating scissors in a Petri dish. Using a scoopula, add 15 cm³ of minced tissue to the pre-warmed collagenase solution^a. Incubate the solution for 60 min at 37°C under constant, gentle agitation using an incubated shaker plate.
1. The volume of adipose tissue being added is determined based on its displacement of the collagenase solution. Specifically, add minced tissue to the 25 mL of collagenase solution to achieve a total volume of 40 mL in each of the 50 mL conical tubes – invert the conical tubes to mix the minced tissue with the collagenase solution before assessing the volume, using the graduations demarked on the conical tubes.
Figure 2. Harvesting the stromal vascular fraction from human adipose tissue. Schematics and representative photographs depicting the workflow involved in harvesting the stromal vascular fraction from whole subcutaneous abdominal white adipose tissue.
Centrifuge the digested tissue at 1,200 × g and 21°C for 5 min. Discard the buoyant adipocytes and oil using a 25 mL serological pipette; the supernatant can be aspirated as preferred – taking care not to disrupt the loosely pelleted cells and tissue constituting the stromal vascular fraction (Figure 2). Rinse the pellet by resuspending it in 20 mL PBS^–/–, centrifuging it at 1,200 × g and 21°C for 5 min, and discarding the supernatant.
Resuspend the pellet in 20 mL of pre-warmed trypsin-EDTA solution and incubate for 15 min at 37°C under constant, gentle agitation.
Add 20 mL of pre-warmed Endothelial Cell Growth Medium-2 to the solution, centrifuge it at 1,200 × g and 21°C for 5 min, and discard the supernatant. Rinse the pellet by resuspending it in 20 mL of PBS^–/–, centrifuging at 1,200 × g and 21°C for 5 min, and discarding the supernatant.
Resuspend the pellet in 20 mL of erythrocyte lysis buffer and incubate for 10 min at 21°C under constant, gentle agitation.
Centrifuge the solution at 1,200 × g and 21°C for 5 min, discard the supernatant, and resuspend the pellet in 20 mL of PBS^–/–. Filter the suspension through 100 µm and 40 µm cell strainers, in that order. Comprising the stromal vascular fraction, the filtrate is immediately prepared for magnet-assisted cell sorting.

Isolate CD45^–CD31⁺ HAMVECs from the stromal vascular fraction by magnet-assisted cell sorting (Figure 3)^a,b (Duration: 1.5–3 h)
1. The stromal vascular fraction is depleted of CD45⁺ leukocytes prior to positively selecting for CD45^–CD31⁺ HAMVECs due to the high prevalence of leukocytes in adipose tissue and their capacity to express characteristic endothelial markers, including CD31.
2. CD45^–CD31^– ASCs are a by-product of this procedure and may be retained for downstream studies (see Notes).
Figure 3. Isolating endothelial cells from the stromal vascular fraction by magnet-assisted cell sorting. Schematic depicting the magnet-assisted cell sorting strategy employed to isolate HAMVECs from the stromal vascular fraction of enzymatically digested adipose tissue.
1. Pool the filtrates derived from two collagenase solutions into a single 50 mL conical tube. Centrifuge the cell suspension at 300 × g and 4°C for 5 min, discard the supernatant, and resuspend the cells in 100 µL of pre-chilled MACS buffer.
2. Vortex anti-CD45 Dynabeads for ≥30 s before aliquoting 50 µL into a 5 mL round-bottom test tube. Rinse the anti-CD45 Dynabeads by suspending them in 1 mL of pre-chilled MACS buffer and using the DynaMag-5 magnet to retain the Dynabeads while discarding the supernatant^a.
  1. The Dynabeads will be pulled towards the DynaMag-5 magnet quickly – wait an additional ~30 s before discarding the supernatant.
3. Add the cell suspension to the 5 mL round-bottom test tube containing the rinsed anti-CD45 Dynabeads, gently mix via pipetting, and incubate for 20 min at 4°C. Agitate the suspension every 5 min by gently flicking the bottom of the tube.
4. Add 900 µL of pre-chilled MACS buffer to the cell suspension and gently mix via pipetting before using the magnet to separate the CD45⁺ leukocytes from the CD45^– cells. Retain the supernatant containing the CD45^– cells, transferring it into a new 5 mL round-bottom test tube. Resuspend the Dynabead-bound CD45⁺fraction in 1 mL pre-chilled MACS buffer, repeat the magnet-assisted cell sorting, and pool the CD45^– fractions^a.
  1. The CD45⁺ leukocytes can be discarded or retained for further study.
5. Centrifuge the CD45^– cells at 300 × g and 4°C for 5 min, discard the supernatant, and resuspend the cells in 100 µL of pre-chilled MACS buffer. Add biotinylated anti-CD31 antibodies to the cell suspension to achieve a final concentration of 5 µg/mL (lot dependent), and incubate for 20 min at 4°C. Agitate the suspension every 5 min by gently flicking the bottom of the tube.
6. Add 3 mL pre-chilled MACS buffer to the suspension and gently mix via pipetting before centrifuging at 300 × g and 4°C for 5 min. Discard the supernatant and resuspend the cells in 100 µL of pre-chilled MACS buffer.
7. Vortex anti-biotin Dynabeads for ≥30 s before aliquoting 25 µL into a 5 mL round-bottom test tube. Rinse the Dynabeads by suspending them in 1 mL of pre-chilled MACS buffer and using the magnet to retain the Dynabeads while discarding the supernatant.
8. Add the cell suspension to the 5 mL round-bottom test tube containing the rinsed anti-biotin Dynabeads, gently mix via pipetting, and incubate for 20 min at 4°C. Agitate the suspension every 5 min by gently flicking the bottom of the tube.
9. Add 900 µL of pre-chilled MACS buffer to the cell suspension and gently mix via pipetting before using the magnet to separate the CD45^–CD31⁺ HAMVECs from the CD45^–CD31^– ASCs. Aspirate the supernatant containing the CD45^–CD31^– fraction^a and retain the Dynabead-bound CD45^–CD31⁺ HAMVECs.
  1. The CD45^–CD31^– fraction can be either discarded or retained to establish primary cultures of ASCs.
10. Resuspend the Dynabead-bound CD45^–CD31⁺ HAMVECs in 1 mL of pre-chilled MACS buffer, repeat the magnet-assisted cell sorting, and discard the supernatant. Repeat this step once more. Resuspend the Dynabead-bound CD45^–CD31⁺ HAMVECs in 200 µL of pre-warmed Endothelial Cell Growth Medium-2.
11. Reconstitute DNase I from the CELLection Biotin Binder Kit as per the manufacturer’s instructions, by adding 300 µL Releasing Buffer Component II to each vial of the Releasing Buffer Component I^a. Add 4 µL of DNase I to the Dynabead-bound CD45^–CD31⁺ HAMVECs and incubate for 15 min at 37°C, agitating the suspension every 5 min by gently flicking the bottom of the tube.
  1. Store reconstituted DNase I in 10 µL of aliquots at -20°C for future use.
12. Gently mix the cell suspension via pipetting before adding 800 µL of pre-warmed Endothelial Cell Growth Medium-2 and using the magnet to separate the Dynabeads from the CD45^–CD31⁺ HAMVECs. Retain the supernatant to establish primary cultures of HAMVECs.
Establish, monitor, and expand primary cultures of CD45^–CD31⁺ HAMVECs^a (Duration: ~7 days)
1. Primary cultures of CD45^–CD31^– ASCs may also be established for downstream studies (see Notes).
1. Plate the CD45^–CD31⁺ HAMVECs onto tissue culture-treated polystyrene at a density of ~25,000 cells/cm²in pre-warmed Endothelial Cell Growth Medium-2, and maintain in culture at 37°C, 5% CO₂ under a relative humidity of 85%^a,b.
  1. Table 1 delineates the recommended primary culture vessels onto which HAMVECs can be plated based on the amount of adipose tissue from which they were derived.
  2. CD45^–CD31^– ASCs may also be plated onto tissue culture-treated polystyrene at a density of 25,000 cells/cm², and cultured under the same conditions in the media of your choice.
  Figure 4. Monitoring primary cultures of human adipose tissue-derived microvascular endothelial cells for signs of stromal cell overgrowth. Representative photomicrographs depicting (A) the characteristic endothelial cobblestone-like morphology of HAMVECs and the spindle-shaped, fibroblast-like morphology of ASCs, as well as (B–D) different extents of contamination of primary cultures by ASCs. Scale bars represent 200 µm. Adapted from Antonyshyn et al. (2021).
2. Exchange Endothelial Cell Growth Medium-2 every other day, monitoring primary cultures for confluence and signs of stromal cell contamination (Figure 4)^a. Once the cultures are ~90% confluent, the cells are ready to be passaged into larger culture vessels – unless their overgrowth by ASCs is considerable^b.
  1. HAMVECs assume a characteristic endothelial cobblestone-like morphology after ~4 days, while residual ASCs from the magnet-assisted cell sorting procedure exhibit a spindle-shaped, fibroblast-like morphology (Figure 4A).
  2. The presence of a small number of contaminating ASCs in between colonies of HAMVECs is typical at this stage and should not be of concern (Figure 4B, C). However, if ASCs are out-proliferating and overtaking HAMVECs (Figure 4D), proceed directly to their enrichment (Step D) rather than passaging (Steps C3–C4).
3. Aspirate the media, rinse cells with PBS^–/–, and harvest the cells by incubating them in TrypLE Express for 10 min at 37°C^a. Add an equal volume of pre-warmed Endothelial Cell Growth Medium-2 to the cell suspension, transfer it into a conical tube, and centrifuge at 300 × g and 21°C for 5 min. Discard the supernatant, resuspend the cells in pre-warmed Endothelial Cell Growth Medium-2, and re-plate them onto tissue culture-treated polystyrene in a 1:2–1:3 ratio^b.
  1. Tap the sides of the culture vessels to help release the HAMVECs. Using a serological pipette to repeatedly dispense media over the culture surface also helps recover the cells.
  2. Table 1 provides the recommended culture vessels onto which HAMVECs can be re-plated based on their primary culture vessel.
4. Maintain HAMVECs in culture until they attain ~90% confluence, after which their cultures can be enriched to eliminate any residual ASCs.
Enrich primary cultures of CD45^–CD31⁺ HAMVECs by magnet-assisted cell sorting (Duration: 1.5–2 h)
1. Aspirate the media, rinse cells with PBS^–/–, and harvest the cells by incubating them in TrypLE Express for 10 min at 37°C. Add an equal volume of pre-warmed Endothelial Cell Growth Medium-2 to the cell suspension, transfer it into a conical tube, centrifuge at 300 × g and 21°C for 5 min, and discard the supernatant. Resuspend the cells in PBS^–/–, centrifuge at 300 × g and 4°C for 5 min, and discard the supernatant.
2. Resuspend the cells in 100 µL of pre-chilled MACS buffer and transfer the cell suspension into a 5 mL round-bottom test tube. Add biotinylated anti-CD31 antibodies to the cell suspension to achieve a final concentration of 5 µg/mL (lot dependent), and incubate for 20 min at 4°C. Agitate the suspension every 5 min by gently flicking the bottom of the tube.
3. Add 3 mL of pre-chilled MACS buffer to the suspension and gently mix via pipetting before centrifuging at 300 × g and 4°C for 5 min. Discard the supernatant and resuspend the cells in 100 µL of pre-chilled MACS buffer.
4. Vortex anti-biotin Dynabeads for ≥30 s before aliquoting 25 µL into a 5 mL round-bottom test tube. Rinse the Dynabeads by suspending them in 1 mL pre-chilled MACS buffer and using the magnet to retain the Dynabeads while discarding the supernatant.
5. Add the cell suspension to the 5 mL round-bottom test tube containing the rinsed anti-biotin Dynabeads, gently mix via pipetting, and incubate for 20 min at 4°C. Agitate the suspension every 5 min by gently flicking the bottom of the tube.
6. Add 900 µL of pre-chilled MACS buffer to the cell suspension and gently mix via pipetting before using the magnet to separate the CD45^–CD31⁺ HAMVECs from the CD45^–CD31^- ASCs. Discard the supernatant containing the contaminating ASCs.
7. Resuspend the Dynabead-bound CD45^–CD31⁺ HAMVECs in 1 mL of pre-chilled MACS buffer, repeat the magnet-assisted cell sorting, and discard the supernatant. Repeat this step once more. Resuspend the Dynabead-bound CD45^–CD31⁺ HAMVECs in 200 µL of pre-warmed Endothelial Cell Growth Medium-2.
8. Add 4 µL of reconstituted DNase I to the Dynabead-bound CD45^–CD31⁺ HAMVECs and incubate for 15 min at 37°C, agitating the suspension every 5 min by gently flicking the bottom of the tube.
9. Gently mix the cell suspension via pipetting before adding 800 µL of pre-warmed Endothelial Cell Growth Medium-2 and using the magnet to separate the Dynabeads from the CD45^–CD31⁺ HAMVECs. Retain the supernatant to establish cultures of HAMVECs.
10. Re-plate the CD45^–CD31⁺ HAMVECs onto tissue culture-treated polystyrene in a 1:1 ratio (i.e., seed HAMVECs onto tissue culture-treated polystyrene of the same surface area from which they were derived) to establish purified cultures of HAMVECs. The HAMVECs can now be expanded or used for downstream investigations^a.
  1. While one round of enrichment is typically sufficient in obtaining CD45^–CD31⁺ HAMVECs with a purity ≥98%, their cultures should be monitored for signs of stromal cell contamination and overgrowth. In the event of the latter, another round of enrichment may be performed (Step D).
Data analysis
The purity of HAMVECs should be characterized by flow cytometry prior to their downstream use, as previously described (Antonyshyn et al., 2021). A purity ≥98% CD45^–CD31⁺ is sufficient in establishing temporally stable cultures of HAMVECs, which can be expanded for >10 population doublings and be maintained at confluence for at least 28 days without being overgrown by ASCs (Figure 5). HAMVECs exhibit morphological, molecular, and functional hallmarks of endothelium, yet retain a unique proteomic signature when compared with endothelial cells derived from different vascular beds (Figure 6); that is, HAMVECs isolated using this two-staged magnet-assisted cell sorting procedure retain, at least in part, their endothelial phenotype as well as organ-specific specialization.

Figure 5. Cultures of human adipose tissue-derived microvascular endothelial cells established with purities ≥98% remain free of stromal cell overgrowth for at least 28 days. (A) Prevalence of CD45^–CD31⁺ HAMVECs in the stromal vascular fraction of human subcutaneous abdominal white adipose tissue and the purity of their cultures established using the two-staged magnet-assisted cell sorting procedure. (B) Temporal stability of cultures of HAMVECs established with a purity ≥98% versus those with a purity of 90%. Adapted from Antonyshyn et al. (2021).

Figure 6. Human adipose tissue-derived microvascular endothelial cells exhibit morphological, molecular, and functional hallmarks of endothelium, yet retain a unique proteomic signature when compared with endothelial cells derived from different vascular beds. (A) HAMVECs exhibit a characteristic endothelial cobblestone-like morphology, and express CD31, vascular endothelial (VE)-cadherin, and von Willebrand factor (vWF). HAMVECs also perform characteristic endothelial functions, including (B) acetylated low-density lipoprotein (AcLDL) uptake and (C) angiogenic sprouting in gelled basement extract. (D) Protein expression profile of HAMVECs distinguishes them from endothelial cells derived from different vascular beds, such as the dermis, umbilical vein, and coronary artery. Adapted from Antonyshyn et al. (2021).
Notes
1. Standard aseptic practices should be employed when conducting this procedure.

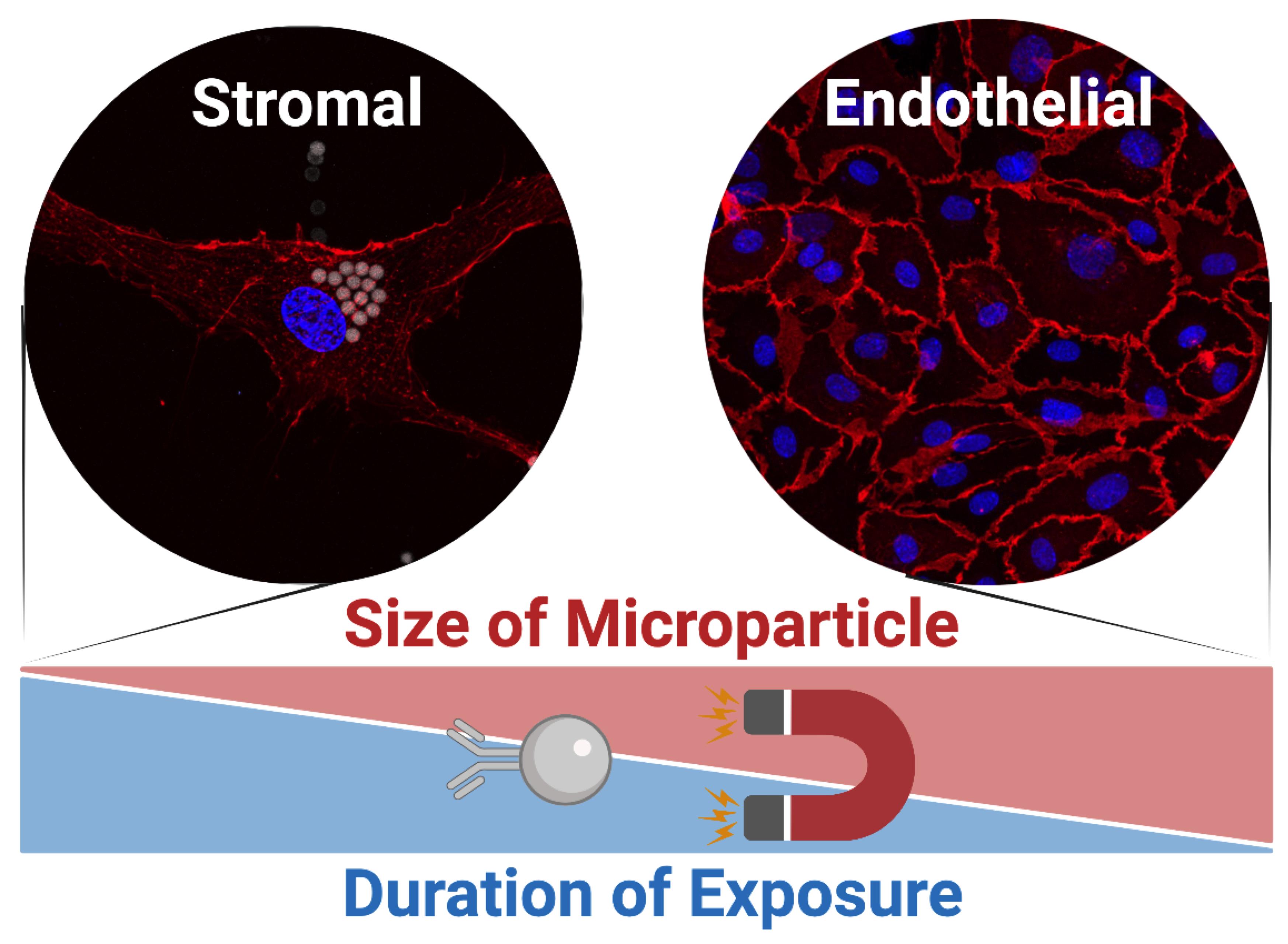

2. The size and binding moiety of the immunomagnetic microparticles are integral to the efficacy of this magnet-assisted cell sorting procedure, and care must therefore be taken to obtain and use the related reagents as delineated herein (see Reagents and Procedure). Immunomagnetic microparticles ≤3.9 µm in modal diameter are readily taken-up by ASCs during the labeling portion of the cell sorting procedure, while those ≥4.4 µm in diameter can be internalized by ASCs in culture (Antonyshyn et al., 2021). Accordingly, the immunomagnetic microparticles employed by this protocol have a modal diameter of 4.8 µm, which mitigates their non-specific uptake by ASCs during the labeling portion of the cell sorting procedure, and they are conjugated to antibodies through cleavable DNA linkers, which enables the exclusion of the superparamagnetic microparticles from primary cultures where they can be more readily internalized by any residual ASCs. This is imperative for the effective isolation and enrichment of HAMVECs by magnet-assisted cell sorting.
3. If CD45^–CD31^– ASCs are retained for downstream investigations, their immunophenotype, clonogenic capacity, and multipotency should be validated in accordance with the guidelines delineated by the International Federation for Adipose Therapeutics and Science and the International Society for Cellular Therapy (Bourin et al., 2013), as previously described (Antonyshyn et al., 2019).
Recipes
1. 0.5 M EDTA Stock
  Add EDTA to 250 mL of MQH₂O, adjust pH to 8.0 using NaOH, and stir under heat (60°C) to dissolve before topping up with MQH₂O to achieve a final volume of 500 mL. Sterilize via 0.22 µm vacuum filter and store at room temperature.
  Reagent Final concentration Amount
  MQH₂O N/A ~406.94 mL
  EDTA 0.5 M 93.06 g
  Total N/A 500 mL
1. Magnet-assisted cell sorting (MACS) Buffer
  Remove 9.14 mL of PBS^–/– from a sterile 500 mL bottle before adding sterile 0.5 M EDTA stock and sterile 35% BSA stock. Store at 4°C.
  Reagent Final concentration Amount
  PBS^–/– N/A 491.86 mL
  0.5 M EDTA Stock 2 mM 2 mL
  35% BSA Stock 0.5% 7.14 mL
  Total N/A 500 mL
2. Erythrocyte Lysis Buffer
  Dissolve KHCO₃, NH₄Cl, and 0.5 M EDTA stock in 490 mL of MQH₂O before topping up with MQH₂O to achieve a final volume of 500 mL. Sterilize via 0.22 µm vacuum filter and store at room temperature.
  Reagent Final concentration Amount
  MQH₂O N/A ~495.28 mL
  0.5 M EDTA Stock 0.1 mM 100 µL
  KHCO₃ 10 mM 0.5 g
  NH₄Cl 0.154 M 4.12 g
  Total N/A 500 mL
3. KRB Stock
  Dissolve NaHCO₃and one aliquot of KRB powder in 1 L MQH₂O. Sterilize via 0.22 µm vacuum filter and store at room temperature.
  Reagent Final concentration Amount
  MQH₂O N/A 1 L
  KRB Powder 1× 1 aliquot
  NaHCO₃ 15 mM 1.26 g
  Total N/A 1 L
4. Collagenase Solution
  Add collagenase, HEPES, and glucose to 50 mL conical tube and store at -20°C until needed. When ready to use, dissolve in KRB stock, add 35% BSA stock, and sterilize via 0.22 µm syringe filter. Warm to 37°C using water bath before adding minced tissue.
  *Note: Final concentration of collagenase reflects that once ~15 cm³ of minced adipose tissue is added to the solution, yielding a final volume of 40 mL.
  Reagent Final concentration Amount
  KRB Stock N/A 23.57 mL
  35% BSA Stock 20 mg/mL 1.43 mL
  D-(+)-glucose 3 mM 13.52 mg
  HEPES 25 mM 148.9 mg
  Collagenase, type II 2 mg/mL* 40 mg
  Total N/A 25 mL
Acknowledgments
This work was funded by the Canadian Institutes for Health Research (grant No. 230762 & 426275). The development and validation of this protocol was previously described by Antonyshyn et al. (2021), and the procedure for harvesting the stromal vascular fraction was adapted from Flynn et al. (2006).
Competing interests
The authors have no conflicts of interest to disclose.
Ethics
Subcutaneous abdominal white adipose tissue was obtained with informed consent from patients undergoing reconstructive breast surgery at the University Health Network (Toronto, Ontario, Canada; institutional research ethics board approval No. 13-6437-CE).
References
1. Abe, T., Thiebaud, R. S. and Loenneke, J. P. (2021). The mysterious values of adipose tissue density and fat content in infants: MRI-measured body composition studies. Pediatr Res 90: 963-965.
2. Alphonse, R. S., Vadivel, A., Zhong, S., McConaghy, S., Ohls, R., Yoder, M. C. and Thébaud, B. (2015). The isolation and culture of endothelial colony-forming cells from human and rat lungs. Nat Protoc 10: 1697-1708.
3. Antonyshyn, J. A., D’Costa, K. A. and Santerre, J. P. (2020). Advancing tissue-engineered vascular grafts via their endothelialization and mechanical conditioning. J Cardiovasc Surg 61: 555-576.
4. Antonyshyn, J. A., Mazzoli, V., McFadden, M. J., Gramolini, A. O., Hofer, S. O. P., Simmons, C. A. and Santerre, J. P. (2021). Mitigating the non-specific uptake of immunomagnetic microparticles enables the extraction of endothelium from human fat. Commun Biol 4: 1205.
5. Antonyshyn, J. A., McFadden, M. J., Gramolini, A. O., Hofer, S. O. P. and Santerre, J. P. (2019). Limited endothelial plasticity of mesenchymal stem cells revealed by quantitative phenotypic comparisons to representative endothelial cell controls. Stem Cells Transl Med 8: 35-45.
6. Bourin, P., Bunnel, B. A., Casteilla, L., Dominici, M., Katz, A. J., March, K. L., Redl, H., Rubin, J. P., Yoshimura K. and Gimble, J. M. (2013). Stromal cells from the adipose tissue-derived stromal vascular fraction and culture expanded adipose tissue-derived stromal/stem cells: a joint statement of the International Federation for Adipose Therapeutics and Science (IFATS) and the International Society for Cellular Therapy (ISCT). Cytotherapy 15: 641-648.
7. Flynn, L., Semple, J. L. and Woodhouse, K. A. (2006). Decellularized placental matrices for adipose tissue engineering. J Biomed Mater Res A 79: 359-369.
8. Graupera, M. and Claret, M. (2018). Endothelial cells: new players in obesity and related metabolic disorders. Trends Endocrinol Metab 29: 781-794.
9. Hutley, L. J., Herington, A. C., Shurety, W., Cheung, C., Vesey, D. A., Cameron, D. P. and Prins, J. B. (2001). Human adipose tissue endothelial cells promote preadipocyte proliferation. Am J Physiol Endocrinol Metab 281: E1037-E1044.
10. McGinn, S., Poronnik, P., Gallery, E. D. M. and Pollock, C. A. (2004). A method for the isolation of glomerular and tubulointerstitial endothelial cells and a comparison of characteristics with the human umbilical vein endothelial cell model. Nephrology 9: 229-237.
11. Rouwkema, J. and Khademhosseini, A. (2016). Vascularization and angiogenesis in tissue engineering: beyond creating static networks. Trends Biotechnol 34: 733-745.
12. Stern, J. H., Rutkowski, J. M. and Scherer, P. E. (2016). Adiponectin, leptin, and fatty acids in the maintenance of metabolic homeostasis through adipose tissue crosstalk. Cell Metab 23: 770-784.
